Mechanical Durability and Structural Integrity of Bone China
Thermal Shock Performance and Heat Retention Capabilities
Optical Translucency and Surface Glaze Quality Standards
Commercial Hygiene Standards and Non Porous Surface Performance
Procurement ROI and Operational Cost Efficiency Analysis
Summary and Technical Recommendations

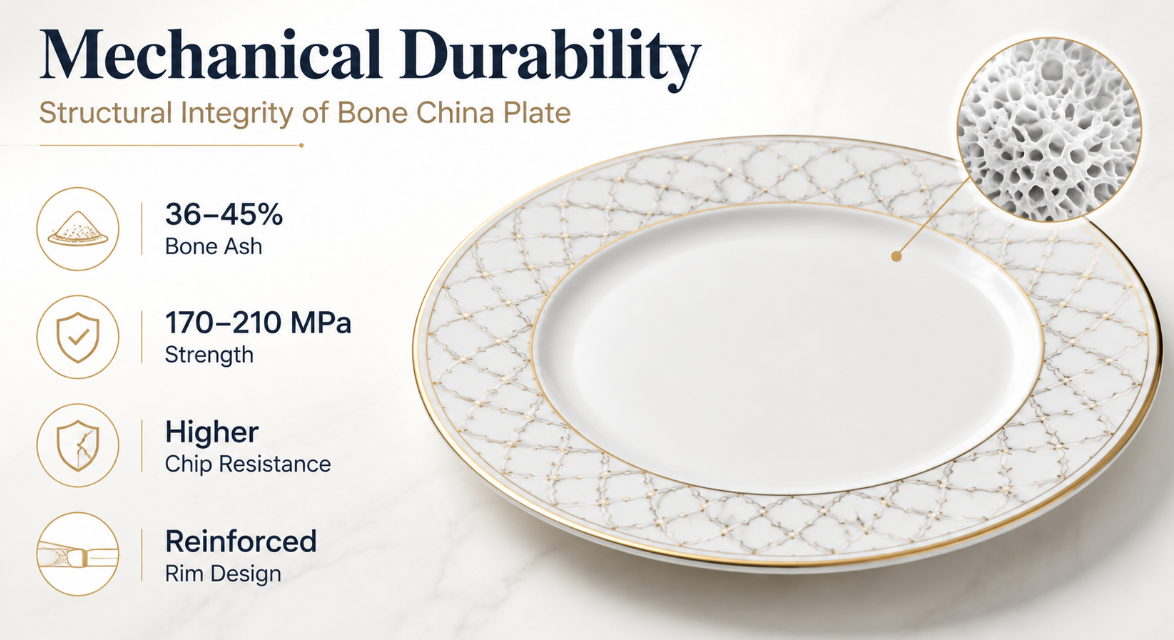

Bone china possesses exceptional mechanical durability due to its unique crystalline matrix composed of tricalcium phosphate combined with feldspar and kaolin yielding extraordinary tensile strength and chip resistance.
The structural advantage of a bone china plate originates directly from its raw material formulation. Unlike traditional hard paste porcelain which relies exclusively on kaolin quartz and feldspar premium bone china incorporates between 36 percent and 45 percent refined tricalcium phosphate derived from natural bovine bone ash. During the primary bisque firing process at temperatures ranging from 1200 to 1250 degrees Celsius the calcium phosphate reacts with the aluminosilicate melt to form a dense interlocking framework dominated by anorthite and beta tricalcium phosphate crystals. This microscopic needle-like crystal lattice effectively dissipates mechanical impact stress preventing crack propagation across the body of the bone china plate under daily operational impacts.
In high volume banquet halls and commercial kitchens food service equipment experiences intense physical handling. Every bone china plate undergoes repeated stacking lateral sliding and accidental rim collisions. Standard porcelain exhibits brittle fracture characteristics under sudden perimeter impact whereas the high elasticity modulus of bone china allows it to absorb and disperse localized kinetic energy. Mechanical edge chipping tests demonstrate that a high quality bone china plate requires significantly higher impact energy to chip compared to reinforced stoneware of equal rim thickness. This structural integrity allows factory design teams to manufacture thinner lighter dinnerware profiles without compromising structural load capacity.
When engineering tableware for international commercial buyers structural geometry is optimized to maximize physical endurance. Edge profiles are routinely reinforced with rolled or slightly thickened rims to mitigate peripheral impact stresses. For modern banquets and high density catering setups selecting specialized hotel bone china plates ensures that the physical dimensions accommodate rapid stacking while maintaining superior rim strength. Structural finite element analysis indicates that stress concentrations during high stack vertical loading are evenly distributed across the base footring preventing baseline cracking during storage and transit.
Physical Property Parameter | Standard Hard Porcelain | Commercial Bone China | Heavy Duty Stoneware |
Bone Ash Content (%) | 0% | 36% to 45% | 0% |
Modulus of Rupture (MPa) | 120 to 140 | 170 to 210 | 80 to 110 |
Edge Impact Resistance (J) | 0.35 to 0.45 | 0.65 to 0.85 | 0.25 to 0.35 |
Body Specific Gravity (g/cm³) | 2.30 to 2.40 | 2.50 to 2.65 | 2.10 to 2.25 |
Water Absorption Rate (%) | < 0.5% | < 0.05% | 1.0% to 3.0% |
Maintenance Guidelines and Handling Protocol: To maximize the service lifespan of a commercial bone china plate during kitchen operations loading racks must feature rubberized or high density polyethylene dividers to prevent direct ceramic to ceramic scraping during automated washing cycles.
Bone china exhibits outstanding thermal shock resistance and thermal retention properties driven by its low coefficient of expansion and dense vitreous internal structure.
Thermal stability is a vital physical metric for professional kitchen operations where tableware undergoes rapid temperature variations. A typical commercial service flow requires a bone china plate to transition quickly from hot holding cabinets at 80 degrees Celsius to ambient plating station temperatures and subsequently into automated conveyor dishwashers at high sanitization temperatures. In standard low fire ceramics these sudden temperature changes induce differential thermal expansion between the interior core and exterior glaze causing thermal crazing micro cracking or catastrophic body failure. Bone china features a highly uniform coefficient of thermal expansion which prevents internal stress accumulation during severe thermal gradients.
Heat retention capability directly impacts the dining experience and food presentation quality. The dense crystal formation within a bone china plate acts as a thermal reservoir maintaining food service temperatures over extended dining periods. Thermal conductivity testing reveals that bone china absorbs thermal energy efficiently and releases it gradually. This thermal inertia ensures that hot entrees served on a warm bone china plate remain at target consumption temperatures throughout multi course dining services. European fine dining establishments prioritize this property to maintain sauce viscosity and culinary temperature profiles from kitchen pass to table delivery.
In modern professional catering environments thermal stress tolerances are tested up to temperature differentials exceeding 150 degrees Celsius. Glaze formulation plays a pivotal role in this performance. A high lead free glaze is fired onto the vitrified bone china body during a second glost firing process at approximately 1100 to 1150 degrees Celsius. The thermal expansion coefficients of the glaze and ceramic substrate are precisely matched through technical compounding. This exact alignment ensures that during hot food service or high pressure steam cleaning the glaze expands and contracts synchronously with the underlying bone china plate preventing surface stress cracking.
Thermal Metric | Testing Standard / Condition | Bone China Performance Value |
Thermal Shock Tolerance | Quench Test (20°C Cold Water) | Resists failure up to ΔT = 160°C |
Coefficient of Thermal Expansion | 20°C to 500°C Range | 5.5 to 6.2 × 10⁻⁶ / °C |
Thermal Conductivity | 100°C Operational Temp | 1.35 to 1.50 W/(m·K) |
Glaze Maturation Temperature | Glost Firing Tunnel Kiln | 1120°C to 1160°C |
The optical translucency and refined ivory tone of bone china stem from pure raw materials and low iron impurity concentrations that create a luminous scratch resistant glaze.
Visual presentation is a core parameter in luxury table setting design. Bone china is globally recognized for its distinct warm ivory whiteness and high optical translucency. When light passes through a thin walled bone china plate the interaction between glassy amorphous phases and crystalline calcium phosphate creates a soft diffused illumination. This unique optical property cannot be replicated by standard vitrified ceramics which contain higher concentrations of iron oxide and titanium impurities that impart a cold grey or bluish undertone. Raw material selection for bone china requires ultra pure kaolin and calcined bone ash with iron oxide content strictly limited to under 0.08 percent.
Surface glaze perfection is equally critical for aesthetic and technical performance. In busy commercial settings tableware is subjected to constant metallic friction from stainless steel knives forks and spoons. Poorly formulated glazes suffer from metal marking leave dark gray scratches and exhibit surface dulling after short operational periods. Bone china utilizes an ultra hard lead free calcium borosilicate glaze formulated to achieve a Mohs hardness rating of 6.5 to 7.0. This extremely hard surface prevents metal transfer micro abrasion and gloss degradation maintaining a mirror smooth finish across thousands of service cycles.
When catering managers specify custom tableware for large venues evaluating the surface planarity and glaze uniformness of each hotel bone china plate is essential. High precision tunnel kiln firing with automated multi zone temperature control guarantees that every individual bone china plate achieves uniform glaze flow and complete gas bubble elimination. The resulting surface exhibits high specular reflection highlighting food arrangements under ambient restaurant lighting. For corporate banquet directors investing in premium durable bone china tableware ensures consistent visual elegance across every dining room table.
Optical and Surface Parameter | Quality Metric Standard | Technical Target Value |
Whiteness Index (CIE L*) | Spectrophotometer Measurement | 88.5 to 91.2 |
Light Translucency (%) | 2.0mm Sample Thickness | 12.5% to 16.0% |
Surface Glaze Hardness | Mohs Hardness Scale | 6.5 to 7.0 |
Glossiness Index (GU) | 60° Glossmeter Reading | > 92 GU |
Iron Oxide Content (Fe₂O₃) | Chemical XRF Analysis | < 0.05% |
Bone china guarantees absolute commercial hygiene through a fully vitrified non porous structure that resists bacterial absorption chemical staining and detergent attack.
Commercial food safety regulations enforced by international health authorities mandate strict non porosity standards for all food contact materials. A standard earthenware or low fired ceramic plate possesses microscopic surface pores and open capillary networks capable of absorbing water fat emulsion proteins and organic juices. Trapped organic residue creates breeding grounds for bacterial colonies leading to cross contamination and unpleasant odors over time. In contrast a bone china plate undergoes high temperature liquid phase vitrification resulting in a water absorption rate below 0.02 percent well under the international compliance threshold of 0.5 percent.
Chemical resistance is another vital operational aspect. Industrial dishwashers utilize highly alkaline liquid detergents and rinse aids operating at high temperatures. Lower grade tableware glazes slowly etch under continuous chemical exposure resulting in surface cloudiness micro pitting and leaching of heavy metals. Bone china glazes are engineered with high concentrations of alumina and silica forming a chemically inert glass network. This structure resists aggressive chemical attack maintaining glaze clarity and zero elemental leaching even after exposure to acidic foods such as tomatoes citrus juices and vinegar dressings.
Maintaining biological cleanliness requires tableware surfaces that shed food debris effortlessly during automated pre rinse cycles. The ultra smooth low energy surface of a glazed bone china plate minimizes organic adhesion allowing grease oil and dried starches to wash away rapidly. This hydrophobic behavior reduces detergent consumption washing temperature requirements and water usage contributing directly to sustainable eco friendly kitchen practices while ensuring full compliance with global sanitation codes.
Hygiene and Compliance Standard | Regulatory Protocol | Bone China Compliance Result |
FDA Food Contact Safety | CPG Sec. 545.400 / 545.450 | Passed (Zero Lead / Cadmium Leaching) |
Water Absorption Standard | ISO 6886 / EN 1217 | Fully Vitrified (< 0.02%) |
Chemical Resistance | ASTM C650 Alkaline / Acid Test | Class A (No Surface Alteration) |
Dishwasher Durability | EN 12875 Commercial Washing | Exceeds 5000 Cycles without Degradation |
Procuring bone china provides a superior return on investment for commercial hospitality operators by significantly lowering annual replacement rates and total cost of ownership.
When purchasing managers evaluate commercial tableware options focusing solely on the initial unit purchase price creates a misleading cost perspective. Low cost ceramic alternatives such as basic earthenware or low density stoneware feature low upfront costs but suffer from high annual breakage edge chipping and glaze marking rates. In commercial hospitality environments low cost ceramics frequently experience annual turnover rates exceeding 35 percent to 50 percent. Conversely selecting a high strength bone china plate reduces annual replacement rates to under 10 percent delivering substantial long term financial savings.
A rigorous total cost of ownership financial model demonstrates the economic advantage of high grade ceramics. While a bone china plate may require a higher initial capital investment its extended operational service life spans three to five years under heavy daily service. The reduction in recurring reorder shipments labor associated with inventory unpacking and replacement storage costs yields a complete financial break even within 12 to 14 months of initial deployment. Hospitality groups deploying high density seating configurations experience substantial reductions in ongoing operating budgets.
In addition to direct cost savings utilizing premium tableware enhances brand positioning customer satisfaction and review ratings. High end banquet facilities and hotel dining venues benefit directly from the luxurious feel lightweight ergonomics and refined acoustic signature of bone china. Unlike heavy clunky stoneware which produces harsh metallic scraping sounds during cutlery contact a bone china plate produces a muted refined tone enhancing the ambient dining experience. For procurement teams seeking long term operational excellence integrating high quality commercial bone china plates aligns financial efficiency with uncompromised hospitality presentation.
Cost & Performance Metric | Standard Stoneware | Hard Paste Porcelain | Commercial Bone China |
Average Initial Unit Cost ($) | $3.50 | $5.50 | $9.00 |
Estimated Annual Breakage / Chip Rate | 40% | 22% | 8% |
Expected Operational Lifespan | 1.2 Years | 2.5 Years | 5.0+ Years |
5 Year Replacement Cost per Unit | $10.50 | $6.05 | $3.60 |
Total 5 Year Cost per Seat ($) | $14.00 | $11.55 | $12.60 (Higher Net ROI) |
In conclusion adopting bone china dinnerware as your go-to commercial tableware strategy is a technically sound and economically advantageous decision for modern food service operations. The unique microstructural combination of calcined bone ash kaolin and feldspar delivers exceptional mechanical impact strength superior thermal shock resistance high glaze hardness and zero porosity hygiene compliance. By selecting a high quality bone china plate commercial venues significantly minimize annual edge chipping and mechanical breakage rates drastically reducing ongoing operational expenses.
For international procurement directors hotel operations teams and catering project leads technical purchasing decisions should prioritize verified raw material specifications strict mineral composition tolerances and certified food safety compliance. Incorporating engineered bone china across high volume dining operations elevates guest presentation standards while securing long term asset durability and financial efficiency.
